2ton Nissan engine LPG Gasoline paper roll clamp forklift
Main Features for new snsc 2T LPG & Gasoline forklift truck
- Our 2ton LPG fork lifter truck equip with powerful original JAPAN ISUZU engine, you can get it's parts in your loacal place very easily;
- 2t LPG engine forklifters lifter truck with auto electric hydraulic transmission by finger with TCM technology;
- 2t LPG fork lifter truck forklifters with a tool box and free spare parts;
- 2t LPG fork lifter truck with CE, ISO, GHOST certificates, quality is guaranteed.
- with USA IMPCO convertor;
- with USA EATON brand steering gear;
- with copper radiator, which has much better heat dissipation performance than aluminum radiator;
- with warning light, title-cylinder anti-dust protection, lamp protection, luxury full suspended comfortable seat, rain-proof overhead guard.
Specification of 2t LPG & Gasoline power forklift:
| Model | | | Unit | FL20 |
| Freatures | power type | | --- | LPG |
| Rated Load | | kg | 2000 |
| Load Center | J | mm | 500 |
| Lifting Height | h1 | mm | 3000 |
| Free Lifting Height | h3 | mm | 106 |
| Fork Size Size(L*W*H) | | mm | 920x122x40 |
| Mast Tilt Radius | | ° | 6/12 |
| Minimum Truning Radius | R1 | mm | 2240 |
| Minimum Stacking Right Angle Channel Width | | mm | 4110 |
| Minimum Right Angle Channel Width | | mm | 2010 |
| Minimum Ground Clearance | | mm | 110 |
| Front Overhang | L3 | mm | 475 |
| Overhead Guard Height | | mm | 2137 |
| Performance | Max.Traveling Speed(Full Load) | | km/h | 19 |
| Max.Lifting Speeding(Full Load) | | mm/s | 490/510 |
| Max.Climbing Ability | | % | 20 |
| Dimension | Overall Length (Without Fork) | L1 | mm | 2573 |
| Overall Width | W1 | mm | 1175 |
| Max.Fork Lifting Height(With Load Backrest) | | mm | 4025 |
| Mast Height | h2 | mm | 1990 |
| Tyre(Front/Rear) | | mm | 7.0-12-12PR/ 6.0-9-10PR |
| Wheel Base | | mm | 1600 |
| Wheel Tread(Front/Rear) | | mm | 970/970 |
| Curb Weight(Without Load) | | kg | 3750 |
| Power | Battery Voltage/Capacity | | V/Ah | 12/90 |
| Rated Power/Speed | | km/r.p.m | 37/2650 |
| Rated Torque/Speed | | Nm/r.p.m | 148/2000 |
| BorexStroke | | mm | 90x100 |
| Cylinder Amount | | --- | 4 |
| Displacement | | L | 2.54 |
| Fuel Tank Capacity | | L | 70 |
| Operation Pressure | | Mpa | 17.5 |
The diesel forklift truck equipment a lot of attachment with:
- paper roll clamp,
- electric hydraulic,
- Japan Shimadzu pump and valve,
- USA Curtis controller, LED light,
- rain-proof overhead guard cover,
- rearview mirror,
- and 2stage 3m mast,
- side shift, dust cover, luxury seat,
- copper tank, colored red,
- rear combine lights ,
- tilt adjustable steering wheel,
- rubber pad, steel light guard, soild tyre,Eetc.
Detailed Images

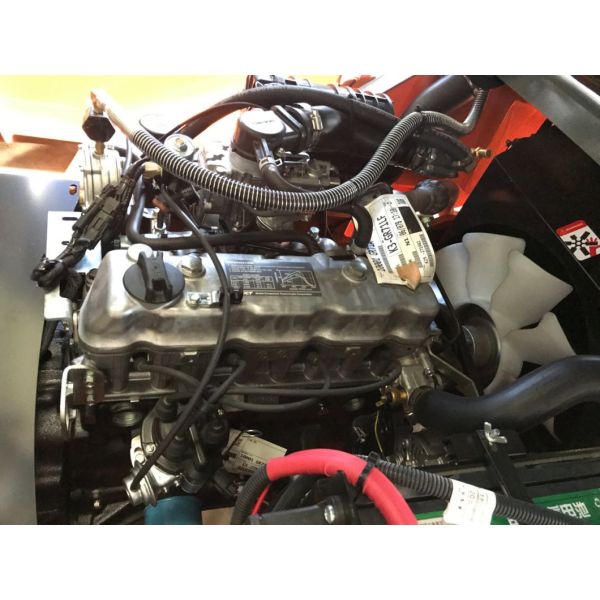

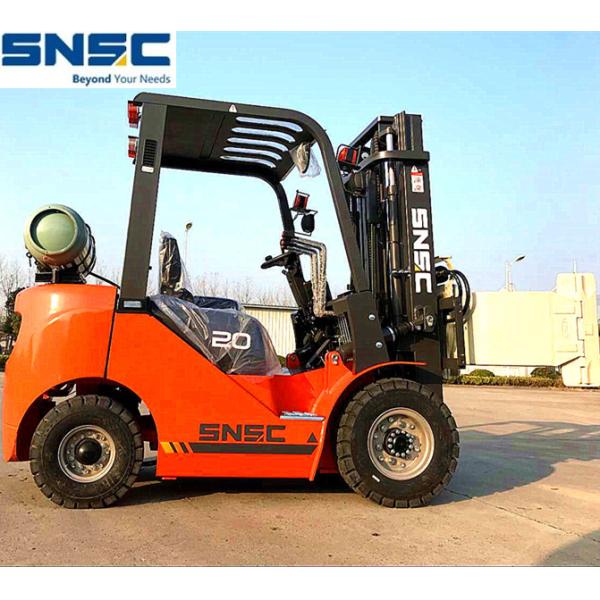

2Ton Nissan Engine FL20 LPG Gasoline Forklift
This Nissan engine performs very well.It's using Japanese technology.
Good quality. It has the advantage of being durable and oil-saving.

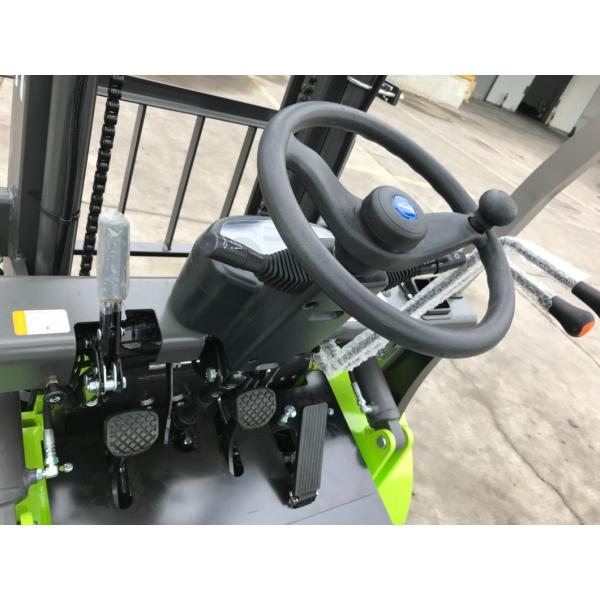

Automatic Transmission systerm
2ton forklift uses automatic transimission with finger, makeing your work very comfortable and efficient.
If you like hand transmission or mechanical transmission, price will be much more competitive.

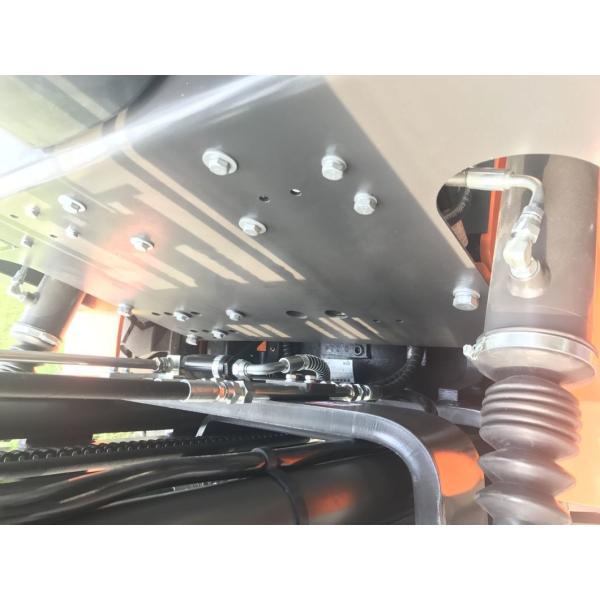

2Ton Nissan Engine LPG Forklift Dust cover and Hydraulic transmission
Our forklift is equipped with dust cover, which can better prevent dust, clean and environmental protection.
High exhaust.
The forklift is equipped with high exhaust devices to better solve the role of emissions and heat dissipation.
This kind of light guard adopted steel structure. It's quality sturdy.

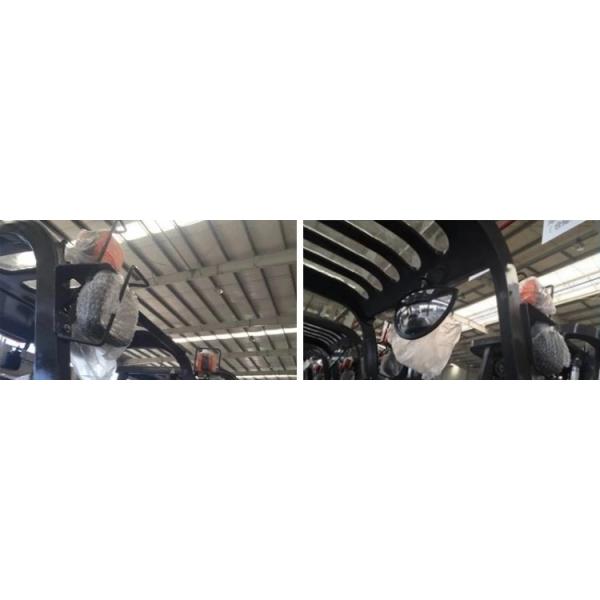

This rearview mirrior is triangle. Beause it's advatage field widely.
Our service

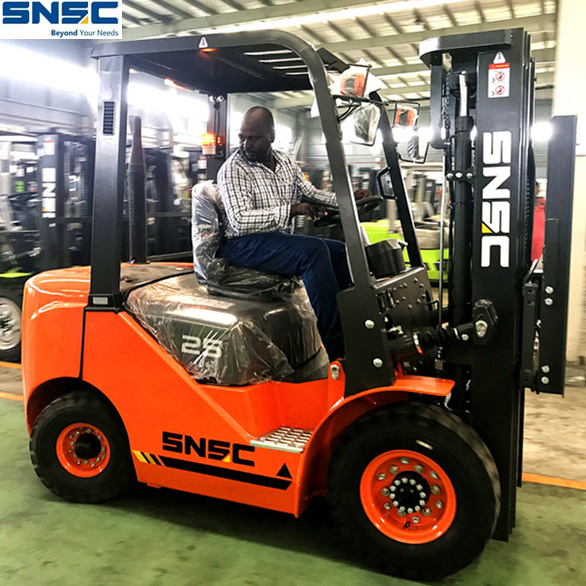

Customer visits factory and test drive the 2 ton forklift
Argentine customers are satisfied with our service, the quality and price of the forklifts.
Customers in the test drive forklift models and control.
- Warranty period: one year or 2000 working hours which come first.
- All with reliable power accessories in Stock.

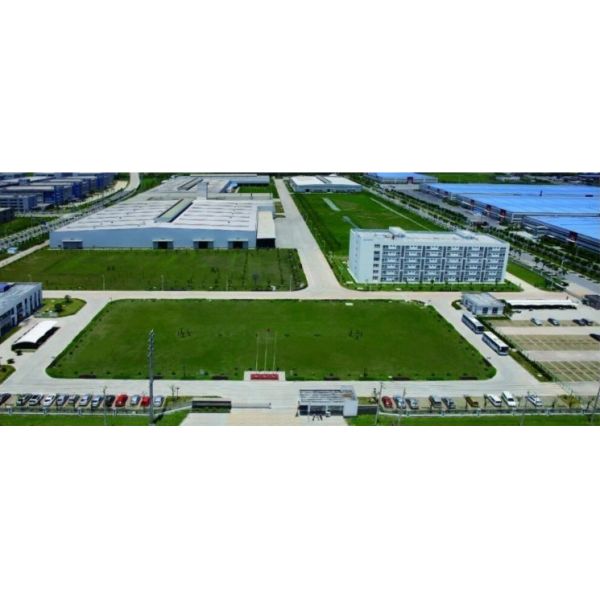

Our Company
We are top 3 in Chinese forklift truck manufactures and top 20 in the world,
with 130,000 square meters production area, over 500 employees,30,000 units forklift truck production capacity per year,5000 sets export volume.
FL20 2T diesel forklift with. We already exported many units to different countries in the world.
Our Production
We have all kinds of forklifts that can meet your needs.
- Diesel forklift truck range from 1 to 10ton;(FD30/35/40/50/60,70/80)
- Battery forklift truck range from 1.5 to 3.5ton;(FB15/20/25/30/35)
- LPG and gasoline forklifts range from 2 to 3.5 ton;
- warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)
- 4 *4 all wheel drive off-road forklift range from 1.8to 5ton.
